Gardelyn

About

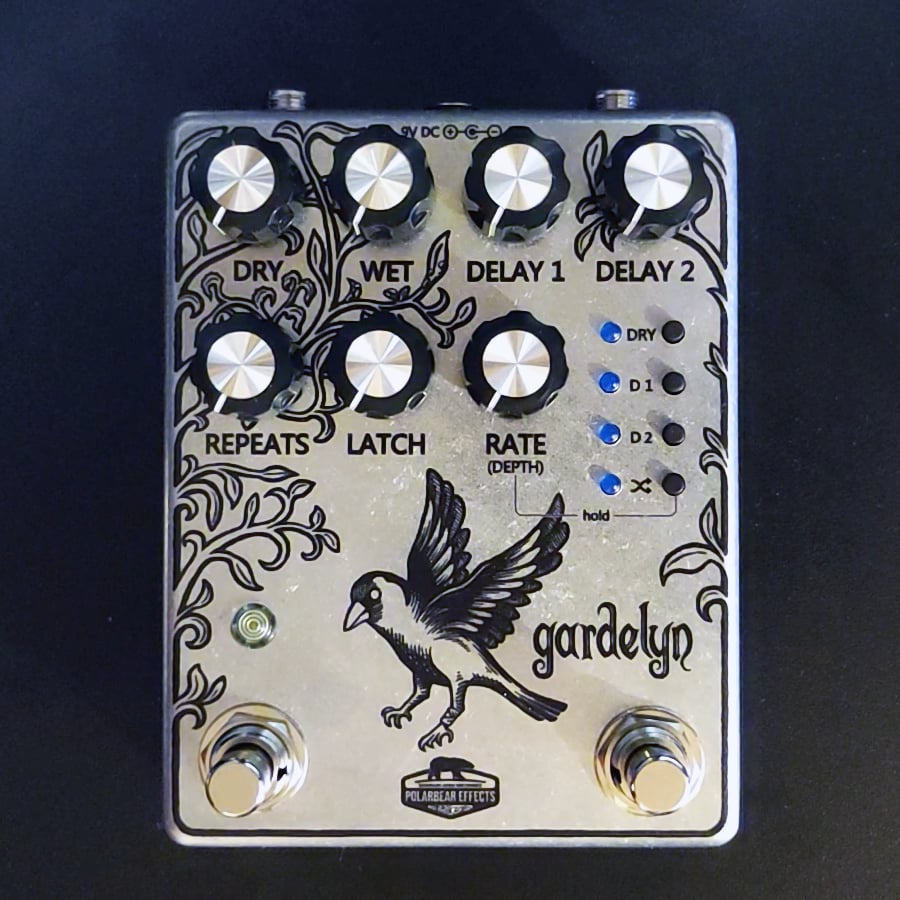

Gardelyn is a dual parallel PT2399 delay pedal with three independent tremolo points: one for the clean signal and one for each delay line.

DRY controls the amount of clean (unaffected) signal.
WET controls the amount of delayed/modulated signal.
DELAY 1 sets the delay time for the first delay.
DELAY 2 sets the delay time for the second delay.
REPEATS controls the number of repeats for both delays.
LATCH controls the probability that the tremolo will stay on the same LED multiple times before passing to the next LED.
RATE (DEPTH) controls the rate and depth of all 3 tremolo points.

Each tremolo offers five states: off, on, blinking, fading, and a blend of blinking and fading:
1st Button/LED pair controls the tremolo state for clean/dry signal.
2nd Button/LED pair controls the tremolo state for Delay 1 signal.
3rd Button/LED pair controls the tremolo state for Delay 2 signal.Holding and releasing any of these three buttons will reset its tremolo state to OFF.

4th Button/LED pair: Adds randomness to the tremolo RATE timing. Hold the 4th button to adjust tremolo DEPTH.

Right footswitch: Press to generate a new random seed for all three tremolo states.
Hold and release to enter seed cycling mode, where the pedal cycles through randomly generated seeds. To exit seed cycling mode, hold and release the footswitch again.

Tip: For any hold-and-release action (on any button or footswitch), the 4th LED will blink to indicate when to release. The 4th LED also blinks while adjusting tremolo DEPTH.

Power
This product should be used with high-quality isolated power supply. It uses 9V DC negative center 2.1mm barrel. Unregulated power supplies as well as higher voltages may result in suboptimal noise performance and even damage your unit.
Current draw for this pedal is ~110mA. Please don't underpower the unit.

Size (L x W x H)
11.7 x 9.2 x 5.7 cm
4.6 x 3.62 x 2.24 inch
1590BB enclosure
